Daft Punk

Remix of the Spaceman of the infamous DJ duo! The helmets were a bit tricky to make because they had somewhat organic shapes. It was a real learning curve to start to work with surfaces in Fusion360 in order to achieve the correct geometries that looked good.

A lot of surface and solid lofting to achieve the correct look

The helmets are a remix of what the real life ones should look on a round LEGO head.

This sketch was pretty fun to draw. A combination of solids and surface lofts.

Lofting is when you transition from one surface to another, or one curve to another to generate a new solid or surface. It’s like morphing 2 lines in 3D space. The most important part of that however is the guides or centerlines. That dictates how the surfaces blend together, otherwise you’re left with a pretty rigid transition.

Designing curves to tell Fusion how to transition from one profile to another is amazing!

Universal Spool Holder

There are many spool holders out there. The problem is there are many spool sizes that makes it hard to build a universal one that works well. I decided to make a spool holder that mounts horizontally and uses the weight of the spool itself to keep the spool in place.

This is version 7 of my design, it’s still in progress and was a good motion study for the joints in CAD. How will it work in practice? We’ll soon find out.

Shower Hook + Suction Cup

I bought some cheap adhesive hooks for the shower but the were poorly designed, flexed, and did not hold up enough weight. Amazon sells a 20 pack of suction cups which I got for a variety of projects so I created these durable hooks to go with them.

Here is the file to download. All the parameters of the suction cups are variables, so if you buy different ones, just enter your specific dimensions.

.

https://www.amazon.com/gp/product/B071WFNKTB?psc=1

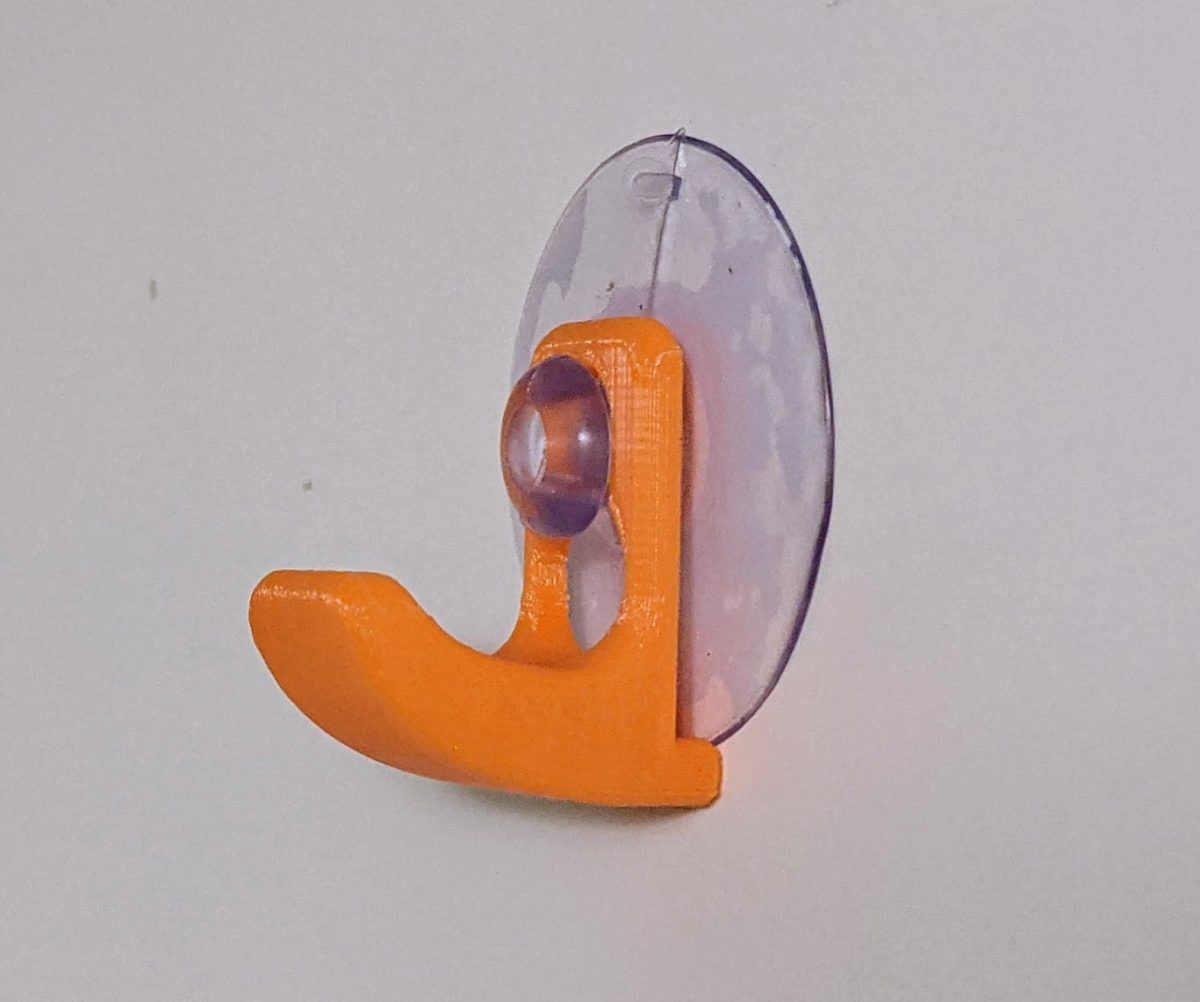

Fusion 3D designed hook

The design allows for the larger round part of the suction cup to slide in, then slide up unto the smaller diameter area at the top. The bottom of the hook features a mini extension exactly the thickness of the suction cup to keep the hook perfectly horizontal and also get the most leverage from the suction cup as well.

The best orientation to print this is sideways for the best strength.

CO2 Laser Control Panel

I absolutely LOVE my Class 4 CO2 Laser cutter/engraver. But it definitely needs some improvements. I’ve added custom lighting, camera, and analog milliamp reader to it and needed a control panel to manage everything. I designed this as an inset panel that controls the AC lines (which are connected to a new UPS).

Prototype test plate

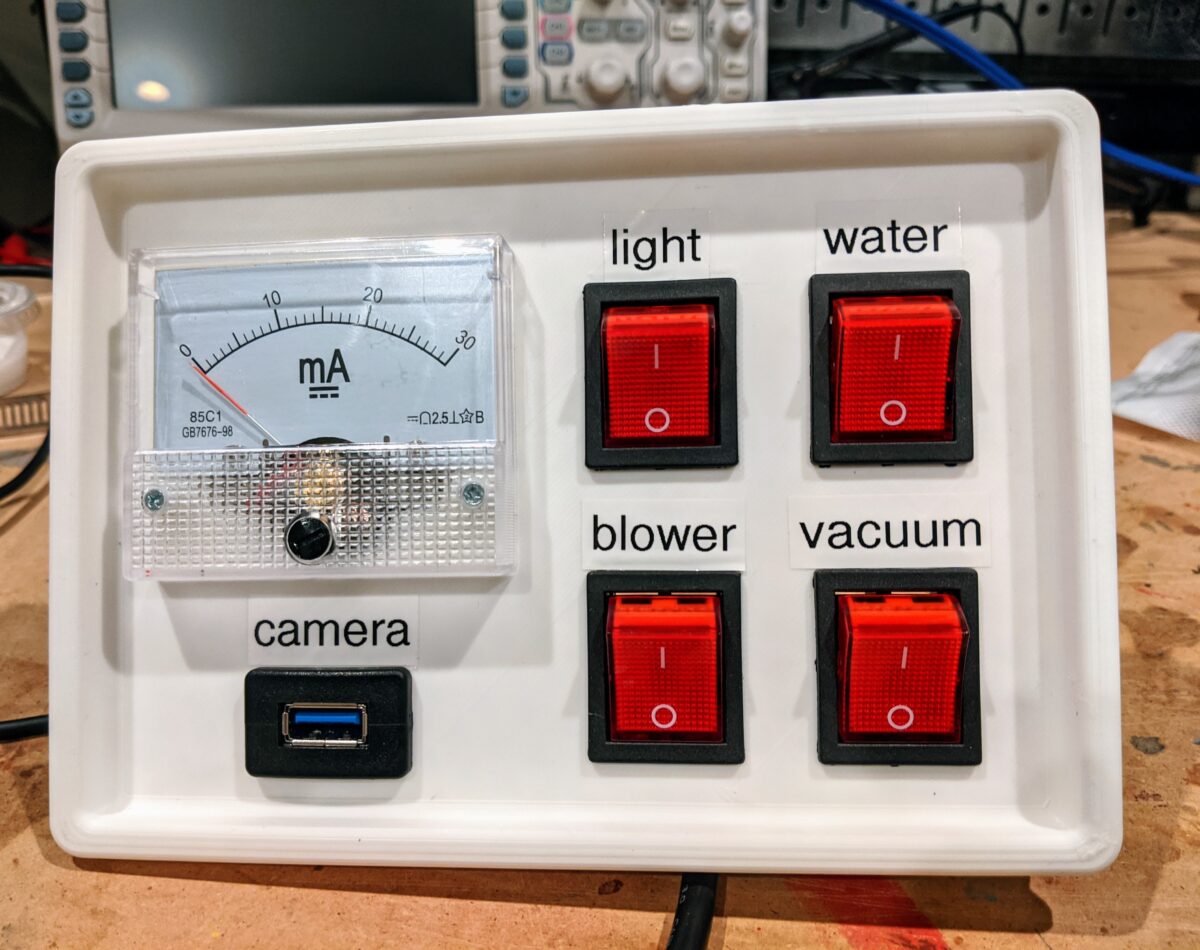

My 3d printer always prints a little larger. My designs need about 0.5-1mm tolerance for fittings so I printed out this flat plate to test the panel mounted switches and hole placements.

Triathlon Bike Phone Mount

I spend hours and hours on my bike. I needed an aerodynamic custom phone mount designed specifically for my phone/bike setup. This is my first multi-part assembly in Solidworks. So satisfying!

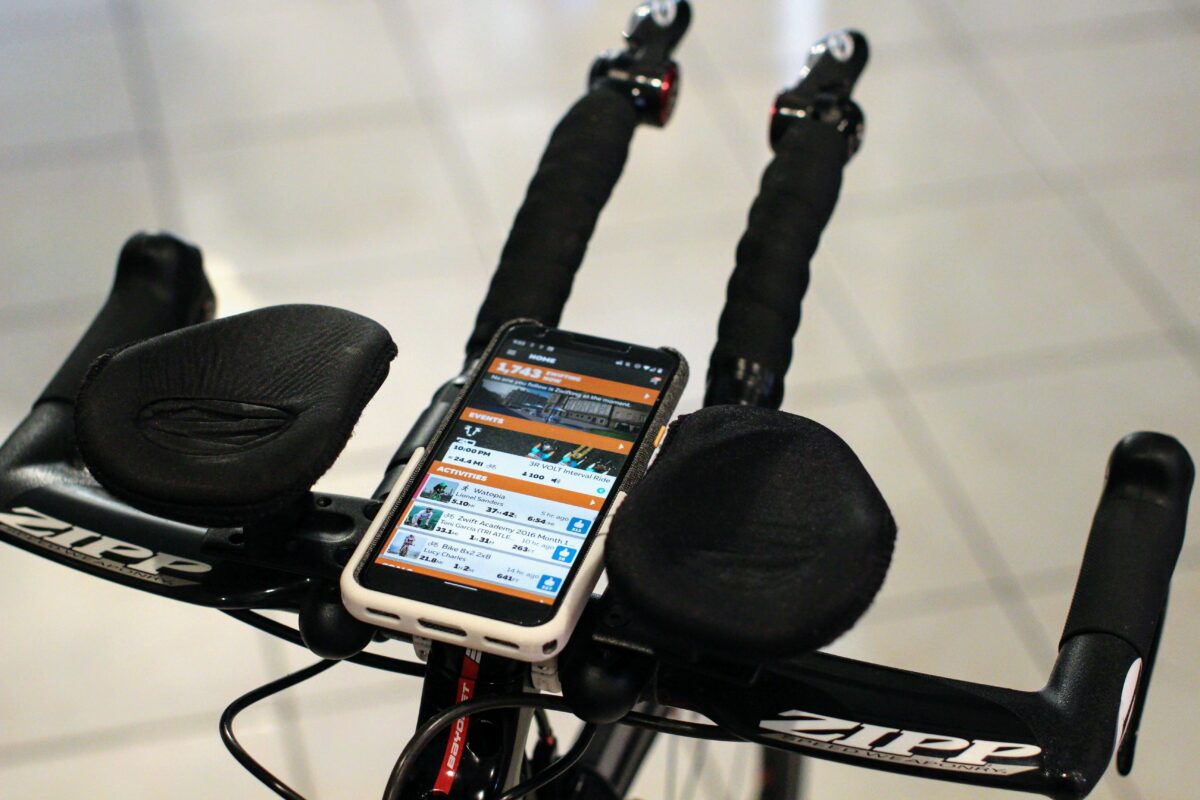

My Ironman triathlon bike.. a Felt DA3

Before I begin, let’s stop and take a look at this beautiful bike. It’s not as high end as some of the $15k+ bikes out there, but it’s gotten me through many Ironman races.

The Tools

  • 3D printer
  • digital caliper

The Materials

  • M2 screws and nuts of varying length
  • PLA filament

The Design

Assembly built in solidworks

I measured the diameter of my aero bars and also the distance between the stem where it would be mounted. I decided on a 3 part assembly to make it easier to print. The pieces of the assembly where designed to be held together with M2 screws/bolts.

The Build

Width fail… used the wrong variable

Always used variable names in Solidworks, but also give them meaningful names so you don’t end up using the wrong measurement for the mount gap width here to account for the stem.

Design fixed and reprinted

After re-printing the design, I pushed in the hex nuts into the slots I designed and screwed bottom mount together. The 3D printer needs a good amount of tolerance for a good fit. I used 2mm for these M2 screws but the fitting was too tight.

Megaman Blaster

Front of the cannon

I custom designed in OpenScad this front of the cannon with LEDs

Backside of canon tip

The back was designed to have holes exactly the size to mount LEDs in. The pieces were printed with “translucent” PLA to diffuse the light.

Gotta have the helmet

I found a mini helmet online and printed a small scale version of it.

Initial print, super rough

This is the assembled first print. There was so much sanding that I had to do. I learned a lot about how to fill holes and smooth out the lines in the print. The support material that was broken off left so much work to be done.

I used some 3M filler to smooth out the print lines

Especially around the yellow lightbar the print was really rough. The post prep on this part was intense.

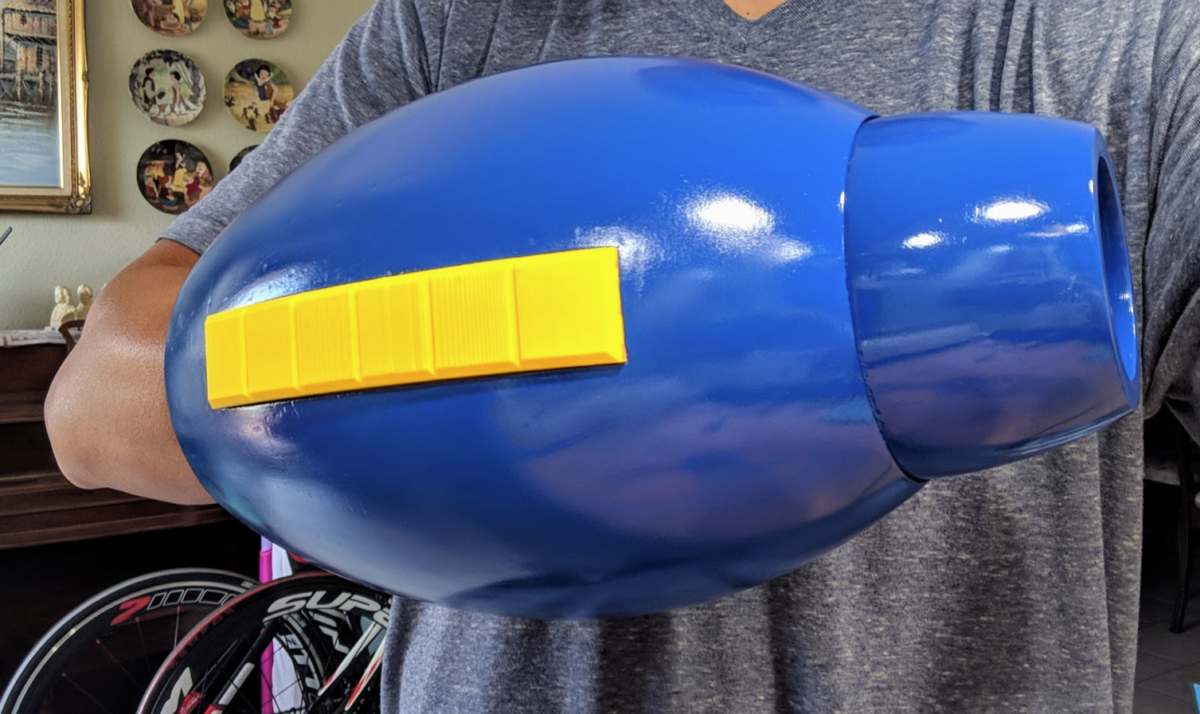

After sanding and painting

Did about 5 sessions of filling and sanding with bondo before I got it to a point where it was nice and round. Here’s me holding the canon. It has a handle inside. Still need to build the electronics.
